App preset
Adobe Premiere Pro: controller layout for Mac
Adobe Premiere Pro can be driven from a game controller, a MIDI pad, or an adaptive controller on a Mac. InputConfig sends real keyboard and mouse events, so the app sees an ordinary keyboard and mouse. This is the layout the app's Smart Preset Maker builds for it: Shuttle, mark, and cut the timeline.
Get the preset in two clicks
- Open InputConfig and click Smart Preset Maker on the welcome screen.
- Search for Adobe Premiere Pro and pick it. The layout below is created as a preset in your sidebar, named and ready.
- Press Activate. Every row can be changed afterwards: the editor's Scan button rebinds any control the moment you touch it.

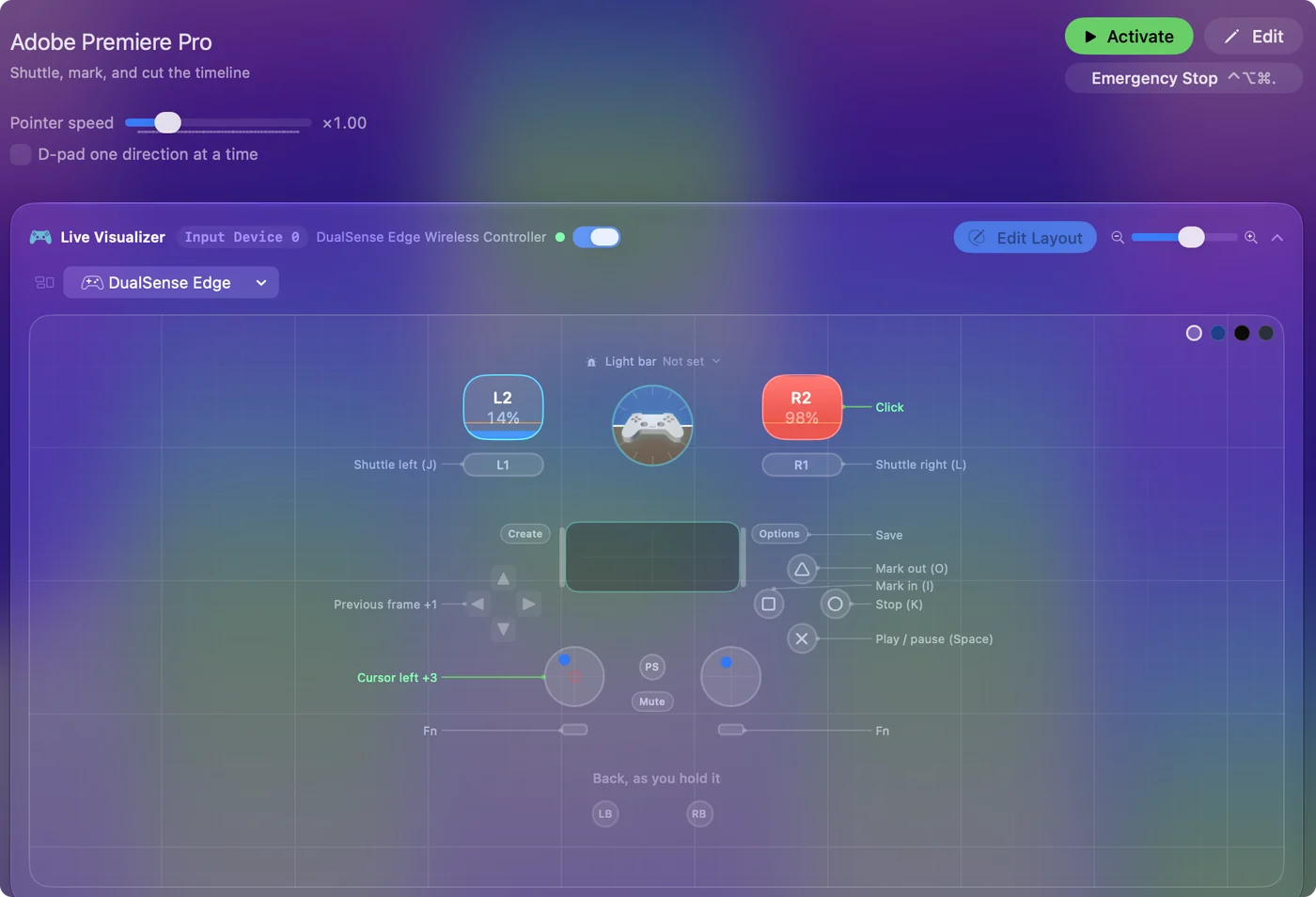

The full button map
| Controller | Sends | What it does |
|---|---|---|
| Left stick left | Mouse motion left (speed 16) | Cursor left |
| Left stick right | Mouse motion right (speed 16) | Cursor right |
| Left stick up | Mouse motion up (speed 16) | Cursor up |
| Left stick down | Mouse motion down (speed 16) | Cursor down |
| Right trigger | Left click | Click |
| A / Cross | Space | Play / pause (Space) |
| LB / L1 | J | Shuttle left (J) |
| RB / R1 | L | Shuttle right (L) |
| B / Circle | K | Stop (K) |
| X / Square | I | Mark in (I) |
| Y / Triangle | O | Mark out (O) |
| D-pad left | Left | Previous frame |
| D-pad right | Right | Next frame |
| Start / Options | Command (Left), S | Save |
Button names follow the Xbox / PlayStation pair shown in the editor, so A / Cross is the bottom face button on either pad. On a Switch Pro Controller the bottom button is labelled B; the mapping still fires on position.
Tips
- J/K/L are the classic shuttle controls; I/O set in/out points.
- D-pad steps one frame at a time for precise trims.
Make it yours
Nothing here is fixed. Rows can be re-scanned to a different control, given hold and double-tap actions, chords, turbo, macros, haptic or spoken feedback, and per-binding deadzones and sensitivity curves. The binding editor guide covers every option, and the controller map shows what each control is called.
