Workflow preset
Text Editing: layout for Mac

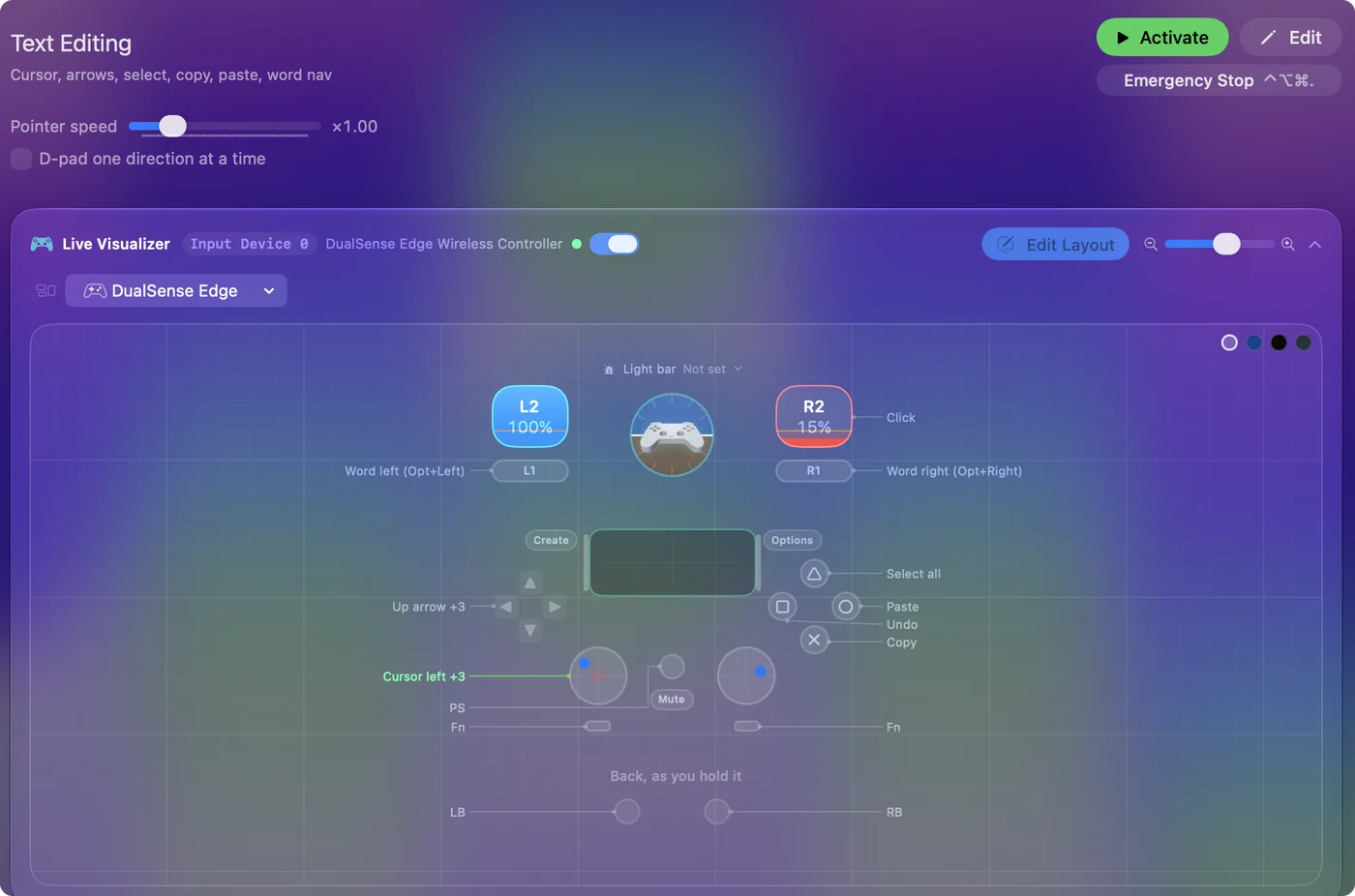

Text Editing can be driven from a game controller, a MIDI pad, or an adaptive controller on a Mac. InputConfig sends real keyboard and mouse events, so the app sees an ordinary keyboard and mouse. This is the layout the app's Smart Preset Maker builds for it: Cursor, arrows, select, copy, paste, word nav.
Get the preset in two clicks
- Open InputConfig and click Smart Preset Maker on the welcome screen.
- Search for Text Editing and pick it. The layout below is created as a preset in your sidebar, named and ready.
- Press Activate. Every row can be changed afterwards: the editor's Scan button rebinds any control the moment you touch it.
The full button map
| Controller | Sends | What it does |
|---|---|---|
| Left stick left | Mouse motion left (speed 16) | Cursor left |
| Left stick right | Mouse motion right (speed 16) | Cursor right |
| Left stick up | Mouse motion up (speed 16) | Cursor up |
| Left stick down | Mouse motion down (speed 16) | Cursor down |
| Right trigger | Left click | Click |
| D-pad up | Up | Up arrow |
| D-pad down | Down | Down arrow |
| D-pad left | Left | Left arrow |
| D-pad right | Right | Right arrow |
| A / Cross | Command (Left), C | Copy |
| B / Circle | Command (Left), V | Paste |
| X / Square | Command (Left), Z | Undo |
| Y / Triangle | Command (Left), A | Select all |
| LB / L1 | Alt / Option (Left), Left | Word left (Opt+Left) |
| RB / R1 | Alt / Option (Left), Right | Word right (Opt+Right) |
Button names follow the Xbox / PlayStation pair shown in the editor, so A / Cross is the bottom face button on either pad. On a Switch Pro Controller the bottom button is labelled B; the mapping still fires on position.
Tips
- D-pad is the arrow keys; left stick is the pointer.
- Face buttons copy, paste, undo, and select all; bumpers jump by word.
Make it yours

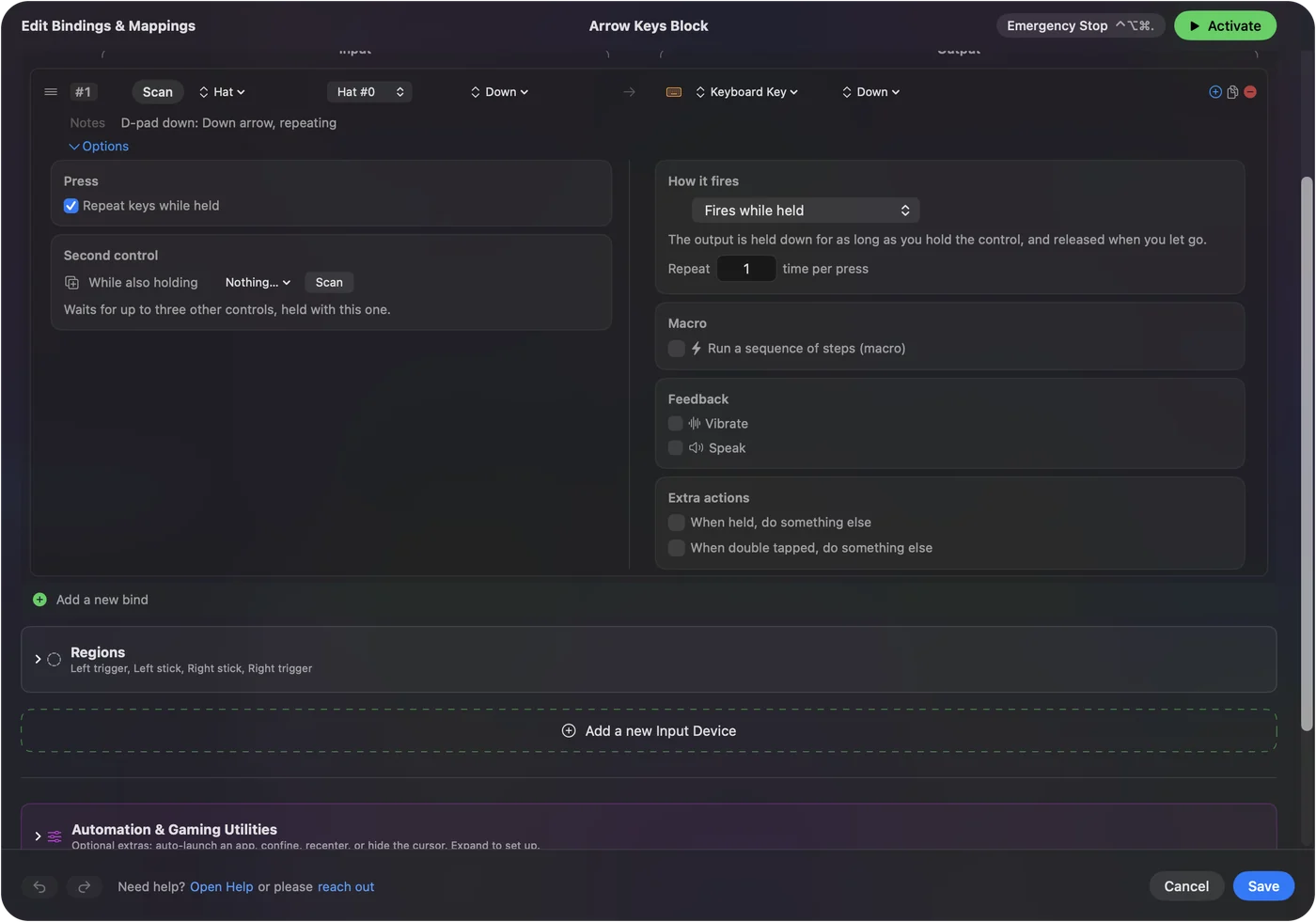

Nothing here is fixed. Rows can be re-scanned to a different control, given hold and double-tap actions, chords, turbo, macros, haptic or spoken feedback, and per-binding deadzones and sensitivity curves. The binding editor guide covers every option, and the controller map shows what each control is called.
