App preset
Microsoft OneNote: controller layout for Mac
Microsoft OneNote can be driven from a game controller, a MIDI pad, or an adaptive controller on a Mac. InputConfig sends real keyboard and mouse events, so the app sees an ordinary keyboard and mouse. This is the layout the app's Smart Preset Maker builds for it: Navigate notebooks and pages comfortably.
Get the preset in two clicks
- Open InputConfig and click Smart Preset Maker on the welcome screen.
- Search for Microsoft OneNote and pick it. The layout below is created as a preset in your sidebar, named and ready.
- Press Activate. Every row can be changed afterwards: the editor's Scan button rebinds any control the moment you touch it.
The preset can open Microsoft OneNote.app for you when it activates.

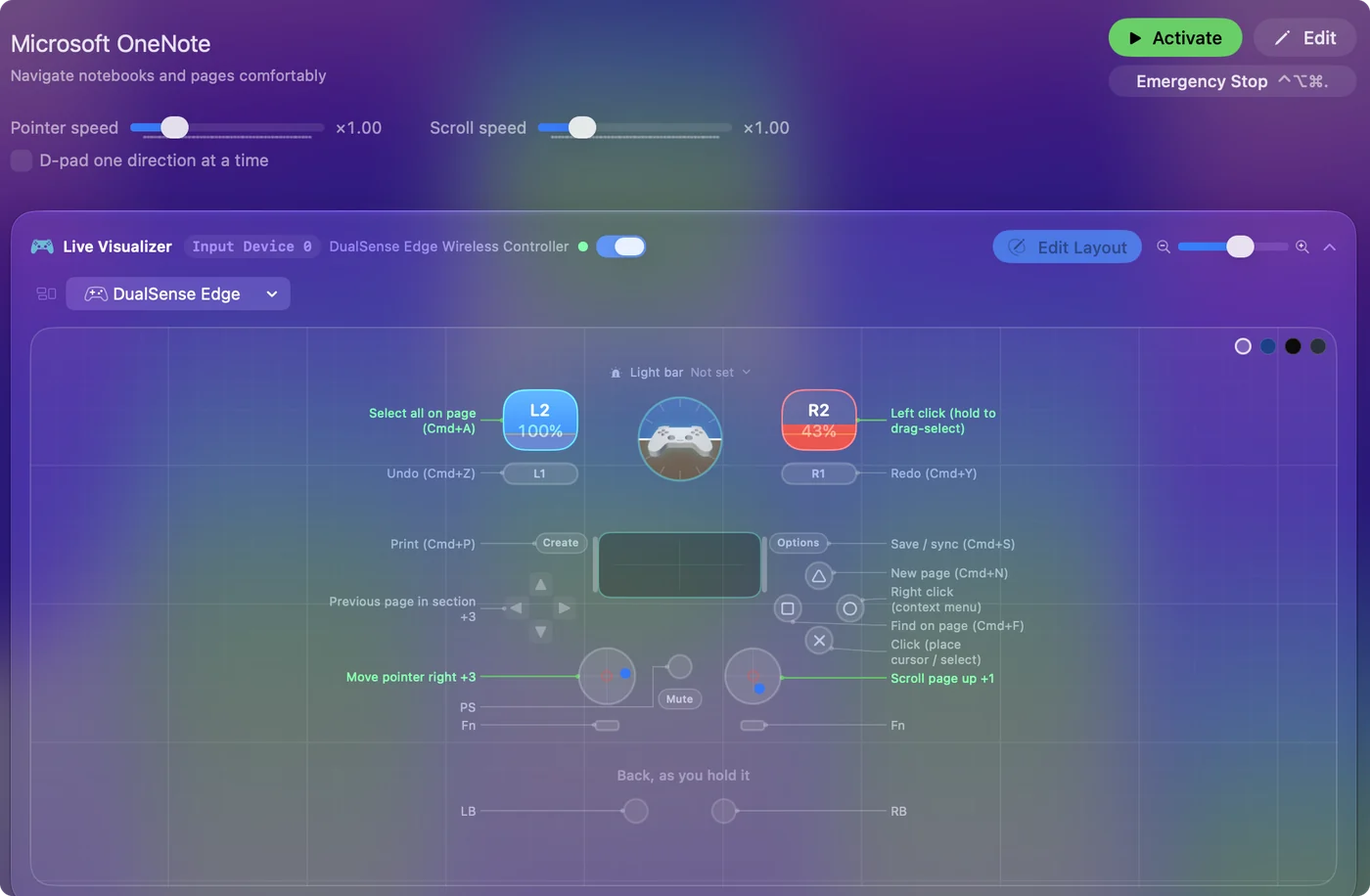

The full button map
| Controller | Sends | What it does |
|---|---|---|
| A / Cross | Left click | Click (place cursor / select) |
| B / Circle | Right click | Right click (context menu) |
| Y / Triangle | Command (Left), N | New page (Cmd+N) |
| X / Square | Command (Left), F | Find on page (Cmd+F) |
| LB / L1 | Command (Left), Z | Undo (Cmd+Z) |
| RB / R1 | Command (Left), Y | Redo (Cmd+Y) |
| Start / Options | Command (Left), S | Save / sync (Cmd+S) |
| Back / Share / Select | Command (Left), P | Print (Cmd+P) |
| D-pad up | Alt / Option (Left), Command (Left), Up | Previous page in section |
| D-pad down | Alt / Option (Left), Command (Left), Down | Next page in section |
| D-pad left | Left | Cursor left |
| D-pad right | Right | Cursor right |
| Left stick right | Mouse motion right (speed 20) | Move pointer right |
| Left stick left | Mouse motion left (speed 20) | Move pointer left |
| Left stick down | Mouse motion down (speed 14) | Move pointer down |
| Left stick up | Mouse motion up (speed 14) | Move pointer up |
| Right stick up | Scroll up | Scroll page up |
| Right stick down | Scroll down | Scroll page down |
| Right trigger | Left click | Left click (hold to drag-select) |
| Left trigger | Command (Left), A | Select all on page (Cmd+A) |
Button names follow the Xbox / PlayStation pair shown in the editor, so A / Cross is the bottom face button on either pad. On a Switch Pro Controller the bottom button is labelled B; the mapping still fires on position.
Tips
- Left stick moves the pointer and right stick scrolls; right trigger clicks and drags.
- Use the D-pad up and down to flip between pages in the current section.
- Y creates a new page and X opens Find so you can jump around quickly.
Make it yours
Nothing here is fixed. Rows can be re-scanned to a different control, given hold and double-tap actions, chords, turbo, macros, haptic or spoken feedback, and per-binding deadzones and sensitivity curves. The binding editor guide covers every option, and the controller map shows what each control is called.
